Material:Carbon Steel; Stainless Steel; Aluminum; Exotic Alloys; Special Steel
Size: 50-10000mm
Thickness: 2mm--300mm ,Tolerances comply with ASME

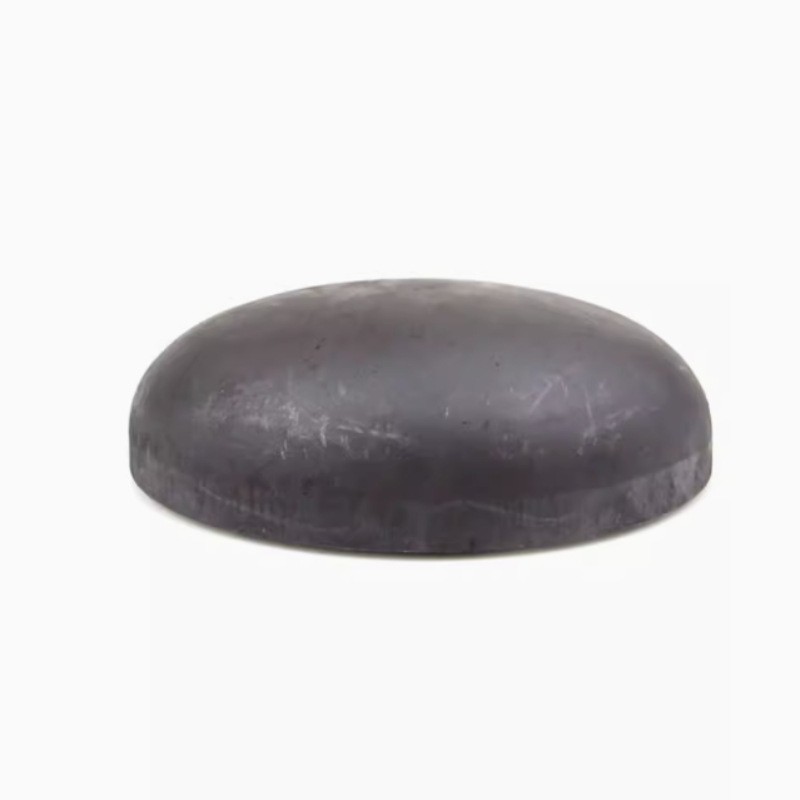

Manufacturer Dish End Tank Torispherical Caps Ends
Product Description
-
Material Grade: Carbon steel, stainless steel, aluminum, titanium, etc. (Customizable according to customer requirements)
-
Size Range: 89 mm to 10,000 mm
-
Applicable Standards: ANSI, ASME, MSS, API, DIN, JIS
-
Certifications: ISO 9001, ISO 14001, OHSAS 18001
-
Product Name: Manufacturer of torispherical dome dished heads (also known as flanged and dished heads)
|
Material |
Carbon Steel;Stainless Steel; Aluminum; Exotic Alloys; Special Steel... |
|
Main Products |
Torispherical; 2:1Semi Ellipsoidal; Hemispherical Head; Flat Bottom Head; Floating Heads; Tank Heads; Dish Heads; Dished Ends; Pipe Caps.... |
|
Surface Treatment |
1. Intermediate & Final stage Heat Treatments; |
|
Technology |
1.Cold & Hot forming ; |
|
Test |
1. Liquid Penetrant Examination; |
|
Application |
Gas and Oil industry, Petrochemical industry, food, etc |
Torispherical head
As the industry standard, torispherical heads are the most cost-effective choice for pressure vessel construction due to their ease of formation.

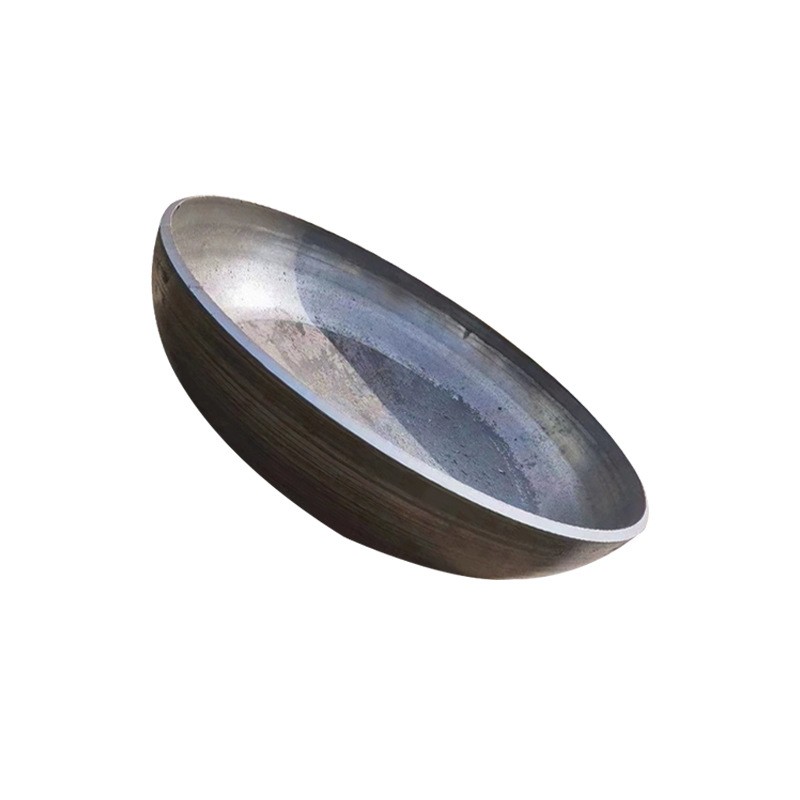

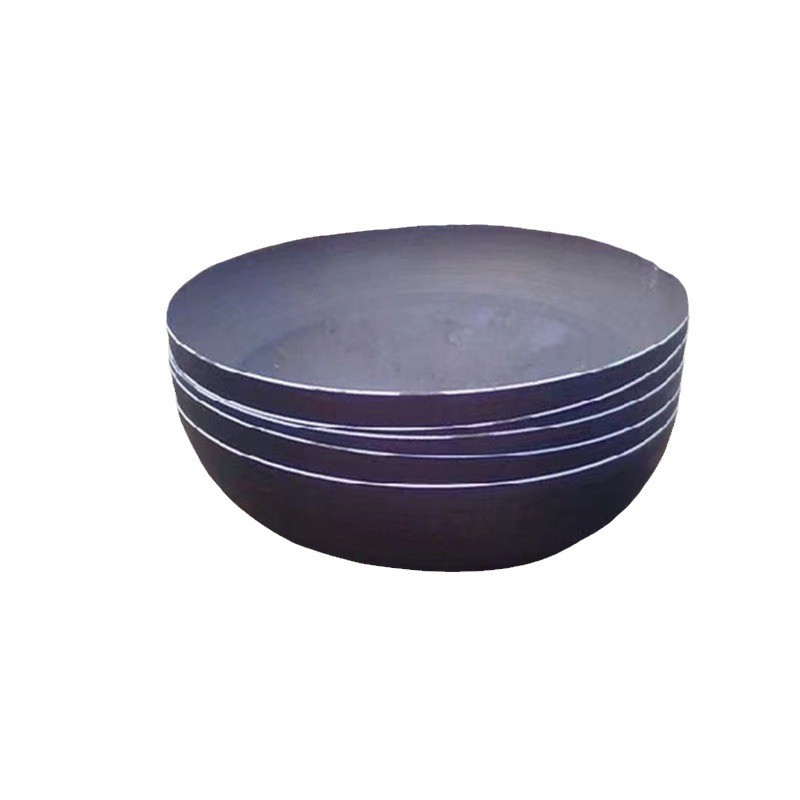

Hemispherical heads
Hemispherical heads achieve the highest pressure rating, with a depth half of the diameter. However, this optimal shape requires fabrication from multiple petals/gores
—the number determined by size and plate thickness making them the most expensive type to form.
Flat heads
A flat head features a flat surface with a knuckled (radiused) outer edge. It is typically used as a base for vertical atmospheric storage tanks or as a lid for smaller vessels.
Conical Head
A conical head is used in pressure vessels and tanks to facilitate the flow of solids or liquids, typically installed at the bottom for drainage or as a transition section between different diameters.
Factory Show
Certification
Our Services
1.Superior Technology
2.Advanced Equipment
3.Complete Testing Methods
4.Strong Customization Capabilities
5.Comprehensive Quality System
6.Guaranteed Delivery Time
Packaging & Shipping
1. Iron Frame
2. Wooden Box
3. Iron pallet
4.Wooden pallet.
5.Professional fixation
6. Customed requirement
Q: What information should I provide when making an inquiry?
A: Thank you for your inquiry. If you have production drawings, we will manufacture exactly according to your specifications. If no drawings are available, please provide the following product details:
-
Material
-
Head type (e.g., elliptical, hemispherical, torispherical, flat, etc.)
-
Diameter
-
Thickness
-
Any special tolerances or requirements
We can create drawings based on your information for confirmation before production begins.
Q: What surface treatments do you offer?
A: Thank you for asking. For carbon steel products, we perform sandblasting to remove scale and impurities. For stainless steel, we conduct acid cleaning to eliminate surface oils and contaminants, ensuring a clean, ready-to-use finish.
Q: How do you ensure product quality?
A: We maintain strict quality control throughout production. All welders are nationally certified and trained, with years of practical experience. Each weld is inspected via X-ray to ensure it is defect-free and meets required standards.
Q: Can you assist with matching related products?
A: Yes. Our company collaborates with a network of trusted partners specializing in flanges, boilers, oil refining equipment
